UHF RFID ANTI-THEFT GATE
Anti-theft for the safety of your goods and your store
Indevo UHF RFID Anti-theft Gates are structures designed to identify unauthorized goods leaving your stores or factoriesnts
We have been developing custom projects based on RFID technologies for over 10 years.
We offer consulting services, provide the most suitable RFID solutions, and offer post-installation support in Italian.
Our experience allows us to develop customized RFID systems even in situations where radio frequency signals are difficult to use, such as in the presence of metal plates, which tend to shield the signal.

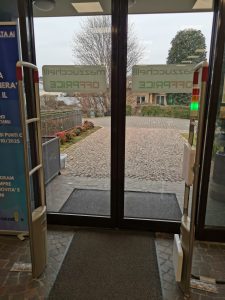

Indevo UHF anti-theft gates (also called UHF anti-theft gates or barriers) are dibon columns for identifying pallets/goods in transit through pedestrian gates.
With the elegant and modern design, pleasant as a whole, it integrates perfectly into any sales point.
Indevo UHF anti-theft gates are made of uhf readers with 1 to 8 antennas and a complete integrated I/O system; they allow very high performance and are able to identify with extreme reliability multiple objects equipped with RFID tags that pass through the port, even in situations where the tags are extremely close to each other (a few mm) and in overlapping situations (dozens of tags on top of each other).
Our UHF anti-theft GATES take readings in just a few milliseconds and this makes their use particularly suitable for the retail sector and beyond.
The use of a 360-degree detection range improves performance as the dependence on the orientation of the uhf label is reduced, and furthermore, it allows its users to be able to protect increasingly wider gaps, raising the safety levels of the sales point.
The dimensions are customizable, including the position of the readers and antennas which can be studied ad-hoc by Indevo staff.
INX025 UHF RFID ANTI-THEFT GATE
|
Operating frequency |
865-868MHZ (EU), 902-928MHZ (USA) |
|
Data format |
With reader proprietary SDKs
EPC followed by CRLF in text format (available with zwms) |
|
Weight |
> 20kg |
|
Connection Interface |
Ethernet 10/100 BaseT |
|
Connectors |
from 1 to 8 Integrated/external antennas |
|
Size |
Height up to 2 mt – Width up to 2 mt – |
|
Power (V) |
Reading unit: 24 Vdc 2.0A External power supply 100-240 Vac 50/60Hz |
|
Buzzer sound |
90dB continuous or intermittent sound level at 30cm. |
|
Display |
Excluded. Upon request |
RFID systems are subject to incentives for industry 4.0
Get the best solution for your business
Advantages of our anti-theft solutions compared to traditional ones
Our UHF anti-theft GATES take readings in just a few milliseconds and this makes their use particularly suitable for the retail sector and beyond.
The main advantages are:
Wider coverage than traditional EAS – UHF systems can cover larger gaps than classic RF or AM anti-theft systems. RF is used in a retail environment or with interference.
Reduce false alarms – UHF tags are unique and help you avoid interference and incorrect readings.
Integration with inventory management – A UHF tag is not only for security, but can also track sales and availability of products in-store.
Greater discretion – UHF antennas can be integrated into gates or ceilings, without the need for obvious barriers.
Possibility of advanced analysis – The data collected can be used to analyze customer behavior and optimize product layout.
RFID technology:
monitoring goods and optimizing production
RFID solutions can be used along the entire production and goods handling chain, responding to different needs:
Traceability
Unique identification of an entity. Track the movements of raw materials and semi-finished products on pallets handled by forklifts or forklift trucks in general.
Inventory
Reduction in inventory execution costs by automatically checking whether a tool or raw material is present in cabinets and shelving.
Warehouse mapping
Speeded up identification process and no longer entrusted to the operator’s memory, therefore free from risk of error.
Product Identification
Traceability of uniquely identifiable objects. Recognition and identification of components to be processed.
Fraud prevention
It assigns each object a unique label that cannot be read by unauthorised persons.
Access control
Attendance tracking linked to the staff management software.
Shipping
Reading of pallets loaded on trucks through the gate.
